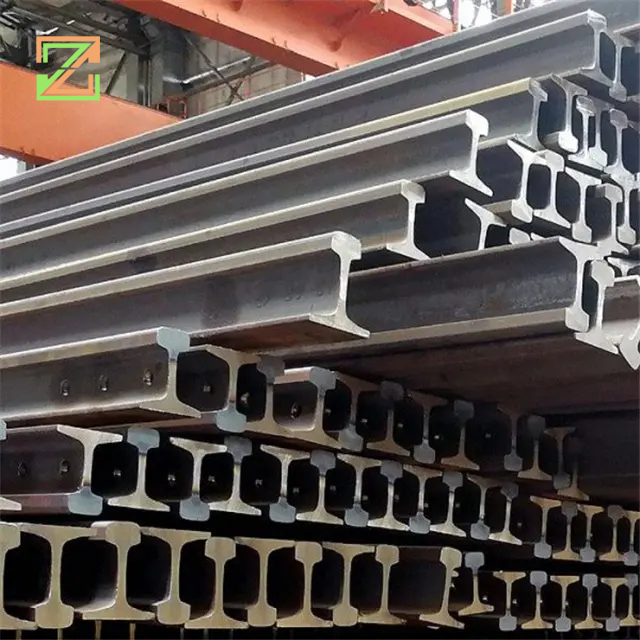

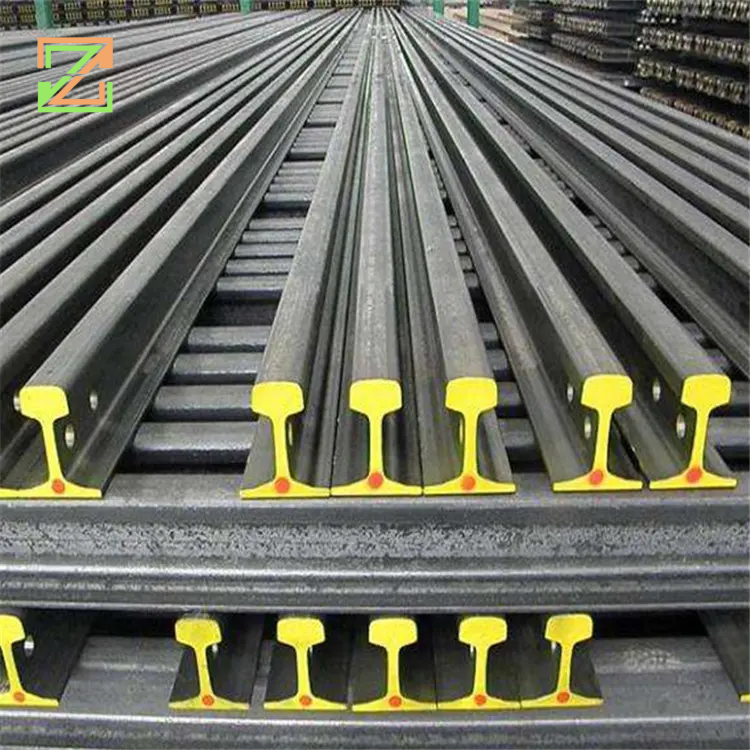

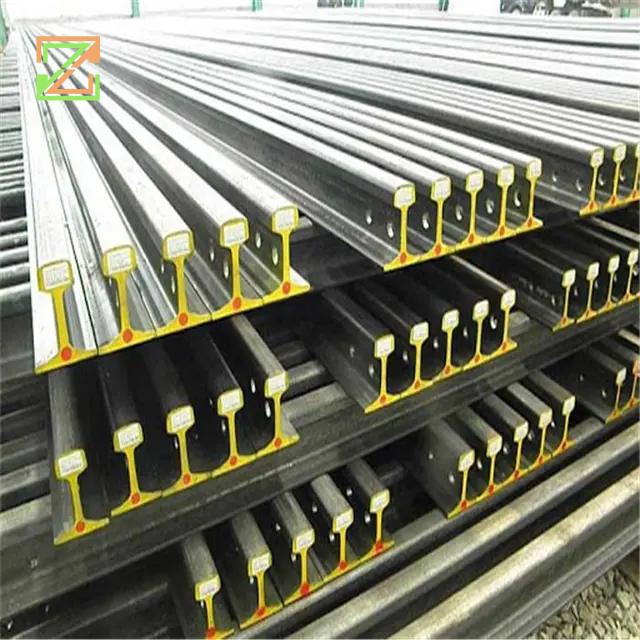

Steel Rail

Steel rail, also known as railroad track or railway track, is a vital component of railway infrastructure that supports and guides railway vehicles, such as trains, trams, and subway cars. Steel rail provides a smooth, stable surface for trains to travel on, ensuring safe and efficient transportation of passengers and freight.

Phone : +86 18615600966

Whatsapp : +86 18615600966

Email : boss@steel-cn.com

Product Description

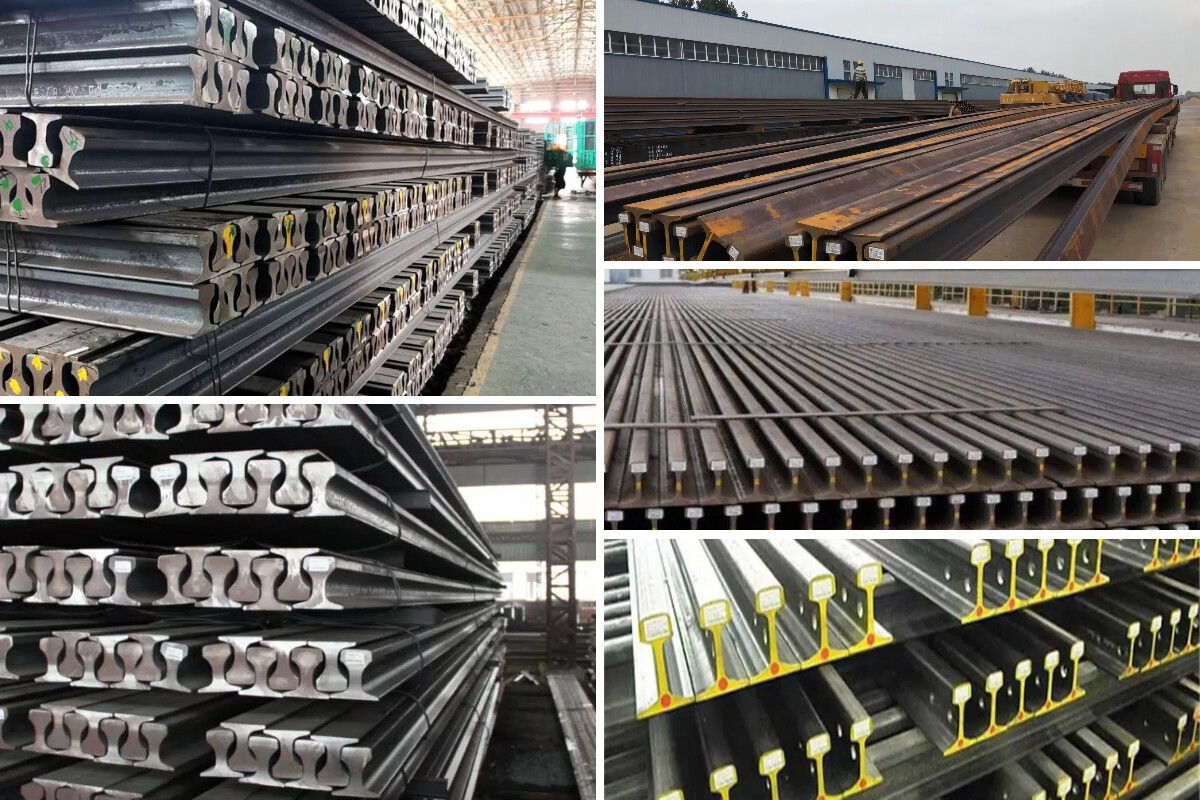

Product Show

Application

Packing And Delivery

Factory Show

Certificate

Standard	Sepc.	Material Typical Grade
UIC860	UIC54	700,900A,900B
UIC860	UIC60	700,900A,900B
EN13674.1	50E1	R200,R350HT,R260Mn,R35LHT,R320Cr,R370CrHT
	54E1
	60E1
	60E2
BS-11-1985	BS80A	700,900A,900B
	BS90A
	BS100A
AREMA	115RE	SS,HH,LA,IH
	136RE	SS,HH,LA,IH
	ASCE60	U71Mn
	ASCE85	U71Mn
GB 2585-2007	50kg/m	U71Mn
	60kg/m	U75V
	75kg/m
TB/T2344-2012	50kg/m	U71Mn,U75V,U77MnCr
	60kg/m	U78CrV
	75kg/m
GB 11264-1989	8kg/m	Q235
	12kg/m	Q235
	15kg/m	55Q, Q235
	18kg/m	55Q, Q235
	22kg/m	55Q, Q235
	24kg/m	55Q, Q235
	30kg/m	55Q, Q235
	38kg/m	50Mn, U71Mn
	43kg/m	50Mn, U71Mn
GB Crane rails	QU70	U71Mn
	QU80	U71Mn
	QU100	U71Mn
	QU120	U71Mn

Standard: ASTMA1, AREMA
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
ASCE 25	38.1	69.85	69.85	7.54	12.4	700	6-12
ASCE 30	42.86	79.38	79.38	8.33	14.88	700	6-12
ASCE 40	47.62	88.9	88.9	9.92	19.84	700	6-12
ASCE 60	60.32	107.95	107.95	12.3	29.76	700	6-12
ASCE 75	62.71	122.24	122.24	13.49	37.2	900A/1100	12-25
ASCE 85	65.09	131.76	131.76	14.29	42.17	900A/1100	12-25
90RA	65.09	142.88	130.18	14.29	44.65	900A/1100	12-25
115RE	69.06	168.28	139.7	15.88	56.9	900A/1100	12-25
136RE	74.61	185.74	152.4	17.46	67.41	900A/1100	12-25
175LBs	109.86	152.4	152.4	38.1	86.8	900A/1100	12-25

Standard: BS11: 1985
Size	Dimension(mm)				Weight	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	(kg/m)	Material	Length (m)
50 O	52.39	100.01	100.01	10.32	24.833	700	6-18
60 A	57.15	114.3	109.54	11.11	30.618	900A	6-18
75 A	61.91	128.59	114.3	12.7	37.455	900A	8-25
75 R	61.91	128.59	122.24	13.1	37.041	900A	8-25
80 A	63.5	133.35	117.47	13.1	39.761	900A	8-25
80 R	63.5	133.35	127	13.49	39.674	900A	8-25
90 A	66.67	142.88	127	13.89	45.099	900A	8-25
100 A	69.85	152.4	133.35	15.08	50.182	900A	8-25
113 A	69.85	158.75	139.7	20	56.398	900A	8-25

Australian Standard Railway
standard:AS1085
Size	Dimension				Weight (kg/m)	Length	Material
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	Weight (kg/m)	(m)	Material
31KG	63.5	117.5	108	11.5	31.5	8-15	900A/1100
47KG	70	141.3	127	14.3	46.5
50KG	70	154	127	15	50.8
60KG	70	170	146	16.5	61
68KG	73.4	186	152	17.5	67.6
73KG	70	157	146	32	73.63
86KG	102	102	155	84.11	85.5
89KG	102	114	178	51	89.81

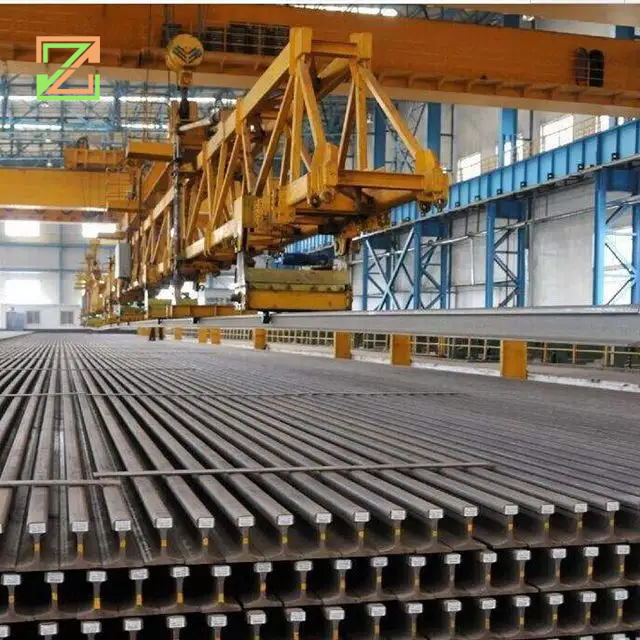

FACTORY SHOW
